4K 60 HDR HDMI USB Type-C Video Capture Card GameDock Ultra Live Streaming,Record via PlayStation, DSLR ezcap320 update Model

(%)
View Cart
Product details

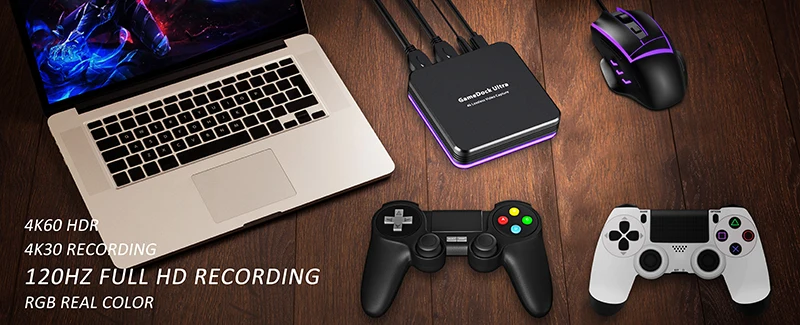

Capture astonishing 4Kp30 HDR video content

Record up to 120 frames per second in crystal clear full HD

High Refresh Rate passthrough get an edge over the competition with support for 1440p 144Hz and 1080p 240Hz displays

Make latency less than 50ms. Even use the capture screen to play game, you hardly notice it.

Uncompressed videos ensure that your gameplay is completely unaltered

For encrypted HDMI, you need to use our live streaming software (ezcap Link) or buy an HDMI splitter.

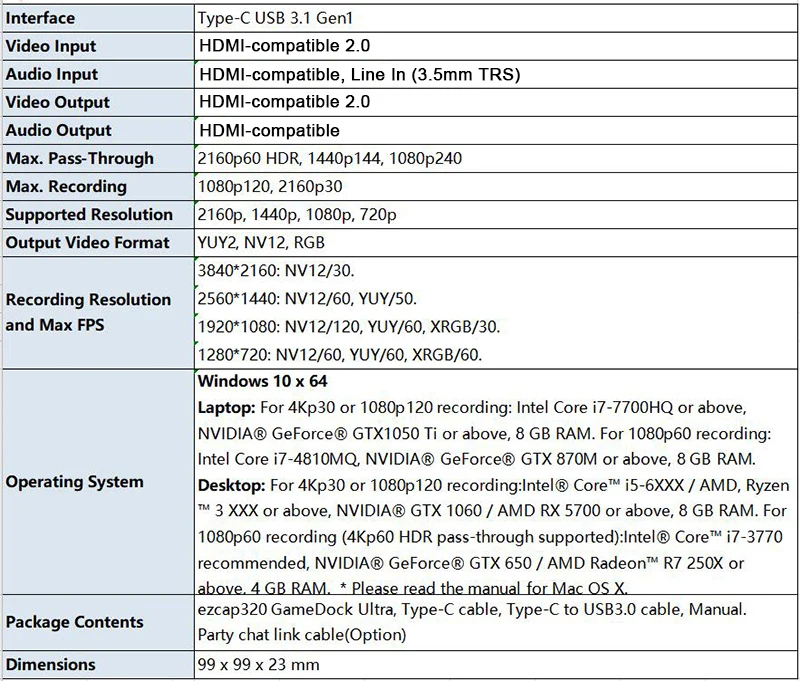

Specifications

Interface:Type-C USB 3.1 Gen1

Video Input:HDMI 2.0(unencrypted HDMI)

Audio Input:HDMI,Line In (3.5mm TRS)

Video Output:HDMI 2.0

Audio Output:HDMI

Max. Pass-Through:2160p60 HDR,1440p144,1080p240

Max. Recording:1080p120,2160p30

Supported Resolution:2160p,1440p,1080p,720p

Output Video Format:YUY2,NV12,RGB

Recording Resolution and Max FPS:

3840*2160:NV12/30.

2560*1440:NV12/60,YUY/50.

1920*1080:NV12/120,YUY/60,XRGB/30.

1280*720:NV12/60,YUY/60,XRGB/60.

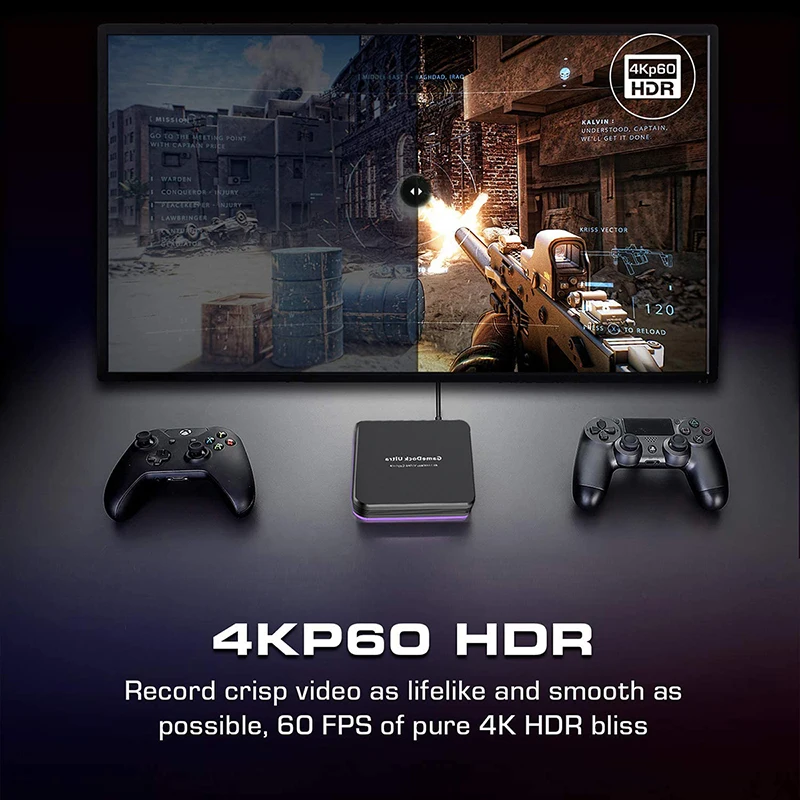

4Kp60 HDR Pass-through

Don’t give up 4K HDR content just to be able to record your gameplay.With 100% lag-free,4Kp60 HDR video pass-through,the GDU allows you to enjoy mesmerizing 4K HDR gameplay and record at 4Kp30.

How to transfer HDR images

1: The video source must be HDR,

2: You need to use HDMI2.0 cable, the HDMI cable we distribute is only 1.4.

3: Your display must be able to support playing HDR images.

120Hz Full HD Recording

With its high frame rate capture ability of up to 120 fps for Full HD signals,the GDU brings super smooth recordings to your archives.

RGB real color format output

meDock delivery RGB format full HD picture to computer lossless video quality up to 1080p30,even connect a PC as source.

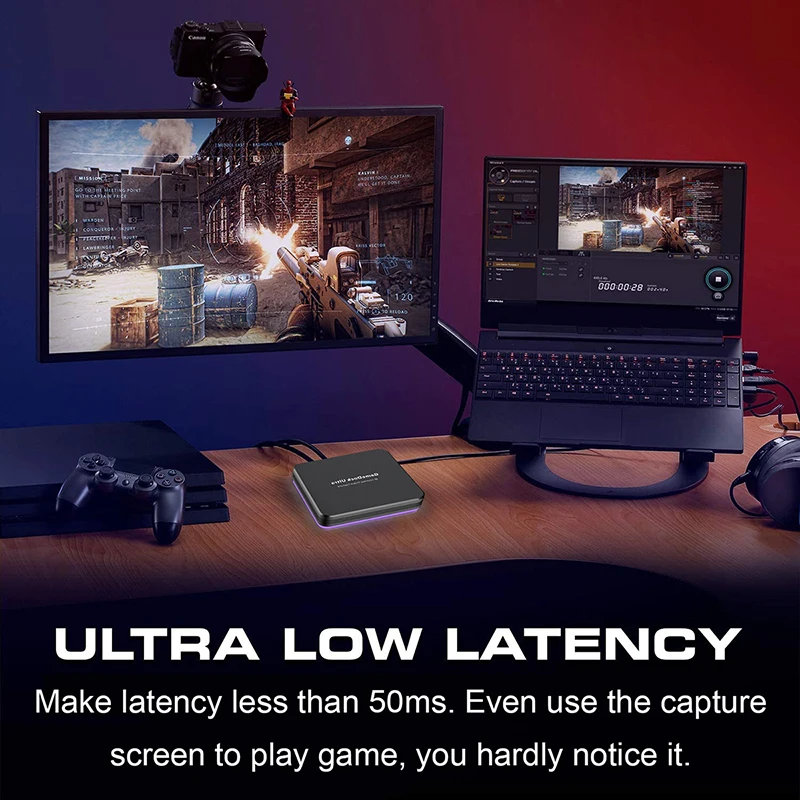

Latency?Not really,not here.

The GDU with latest technology.Make latency less than 50ms. Even use the capture screen to play game, you hardly notice it.

Operating System:Windows 10×64

Laptop:For 4Kp30 or 1080p120 recording:Intel Core i7-7700HQ or above,NVIDIA® GeForce® GTX1050 Ti or above,8 GB RAM.For 1080p60 recording:intel Core i7-4810MQ, NVIDIA® GeForce® GTX 870M or above,8 GB RAM

Desktop:For 4Kp30 or 1080p120 recording:Intel® Core™ i5-6XXX/AMD,Ryzen™ 3 XXX or above,NVIDIA® GTX 1060/AMD RX 5700 or above,8 GB RAM.For 1080p60 recording (4Kp60 HDR pass-through supported):Intel® Core™ i7-3770 recommended,NVIDIA® GeForce® GTX 650/AMD Radeon™ R7 250X or above,4 GB RAM.*Please read the manual for Mac OS X

Ezcap320 was upgraded to Ezcap326, a conversion line was added in the package, and the original Line port was upgraded to Audio port.

Ezcap326 Audio port. We configure Headset adapter and Party chat link cable.
TRRS headset and microphone can be connected directly to the capture card Audio port. TRS needs to use Headset adapte. you can add your sound commentary for the game. You can also listen to the game sound through headphones. Do not let the sound of the game interfere with the rest of your family.

Chat Link Cable:This cable is only for work with consoler(PS4 or Xbox). To record party chat and game play audio

Buyer FAQ:

Some customers report the noise problem of the capture card. The solution is to use an HDMI2.0 cable, otherwise noise will be generated.

Package Contents:

1xezcap326 GameDock Ultra

1xType-C cable,

1xType-C to USB3.0 cable

1xManual.

1xParty chat link cable

1x 3.5mm one-to-two adapter cable

Buyers show:

This is a video recorded by a YouTube blogger with ezcap 320. You can browse through the blogger’s link.

//www.youtube.com/watch?v=PApPvvzn9mk
